Line stage/preamplifier »Calvin« (discontinued)

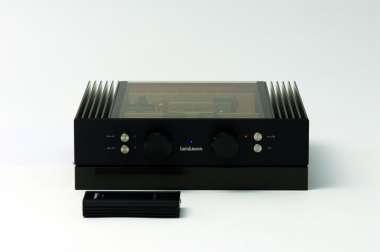

Calvin: click to enlarge

"There it is once again, that breath of infinity - utterly transparent, precise spatial image replication; dynamically and tonally nothing comes even close. A first class investment for the ages." We can't possibly add anything further to these words, except to say that they are quoted from "image hifi". Adding a phono board to our »Calvin« line stage replaces one of the five line level inputs with an MM and MC capable input and makes »Calvin« one of the best preamplifiers available - this addition therefore isn't really somuch an option as a must-have.







Brinkmann Calvin

Specifications

THD/IM distortion0,01%/0,05%
S/N ratio line92 dBA
S/N ratio MM/MC82/78 dBA
Frequency response lineDC ... 250 kHz
Frequency response phono20 Hz-50 kHz
Output voltagemaximum 12 V
Output impedance<1 kOhm
Input impedance line20 kOhm
Input impedance MC600 Ohm
Input capacitance MM50 pF
Weight12 kg; granite base 12 kg;
power supply 3,2 kg
Included in deliverypreamplifier, power supply, power cord, granite base
Optionphono board
Show large picture Show large picture       PDF User Manual [pdf, 56 KB]
